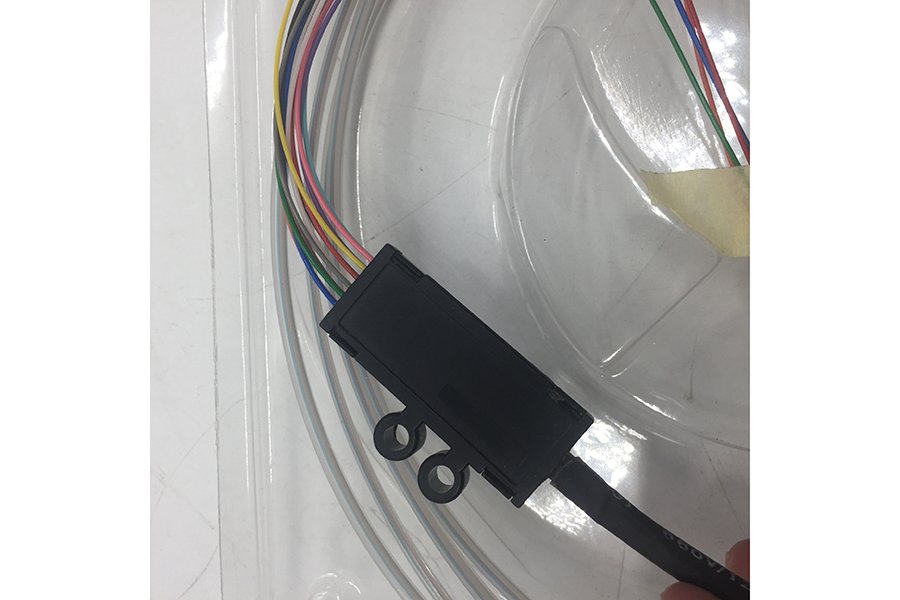

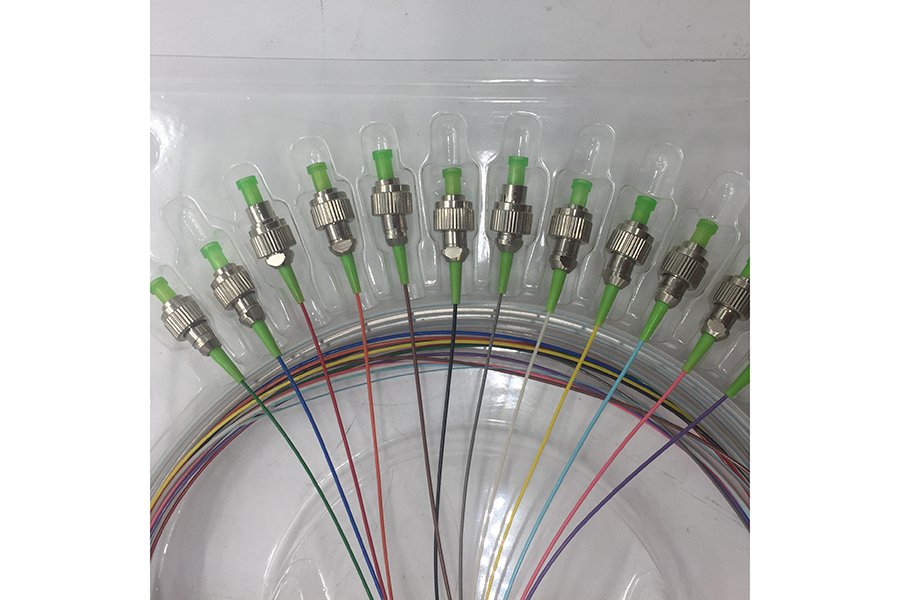

The ribbon fiber optic connector uses a dedicated fiber splitter to separate the fiber ribbon (such as the 12-core) in the cable and protect the fiber, and then process the connection plug to realize the fiber-optic connection of the optical distribution frame (ODF).

Key features

• Widely used in the dense connection between the transmission line and the terminal equipment and the fan-out connection of the ribbon cable to the ODF frame.
• Other industrial and military applications. ANSI, Bellcore, TIA/EIA, IEC and other international standards and domestic telecommunications industry standards 2) Active connection for fiber transmission 3) Small insertion loss and large return loss 4) Good interchangeability and repeatability.

Application scope

• Local area networks (LAN) and access networks
• Telecom networks and Gigabit data network testing
• Medical equipment
• Fiber to the home (FTTH) projects
• Cable network TV (CATV)
• Passive optical network systems (EPON / BPON / GPON)
• Other optical splitting systems
• Metropolitan area networks (MAN)
