MPO type fiber optic patch cord adopts array technology, and can output multi-path light on a small output surface at one end. The conventional output circuit number is 2, 4, 8, and 12 cores, and the pigtail fiber is in the form of ribbon fiber, and the multi-core surface is high.

Key features

• Accurate positioning pins allow precise alignment of multiple fibers while reducing installation time and cost.
• Using high-quality materials and excellent production technology, the joints can be inserted in a high number of times, and the insertion loss variation is <0.30DB interchangeability.
• High-tech grinding technology and grinding equipment, fiber recesses, ceramic end face radius of curvature technical parameters meet the standard.
• Three-ring ferrules have high reliability and good stability. Good coaxiality and dimensional accuracy.
• Adopting new environmentally friendly PVC material, it has strong tensile strength and low carbon environmental protection.

Application scope

• Fiber to the home (FTTH) projects
• Cable network TV (CATV)
• Passive optical network systems (EPON / BPON / GPON)
• Other optical splitting systems
• Local area networks (LAN) and access networks
• Metropolitan area networks (MAN)

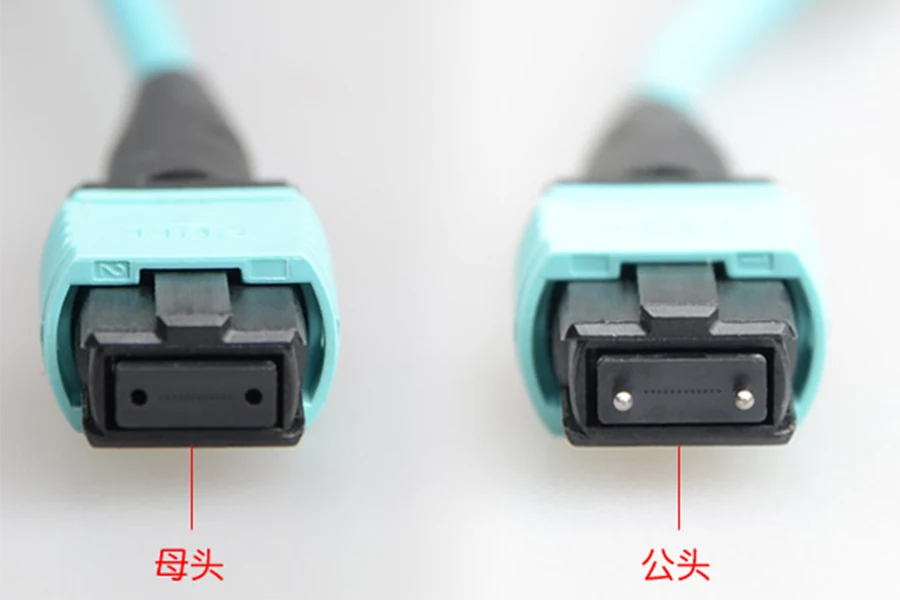

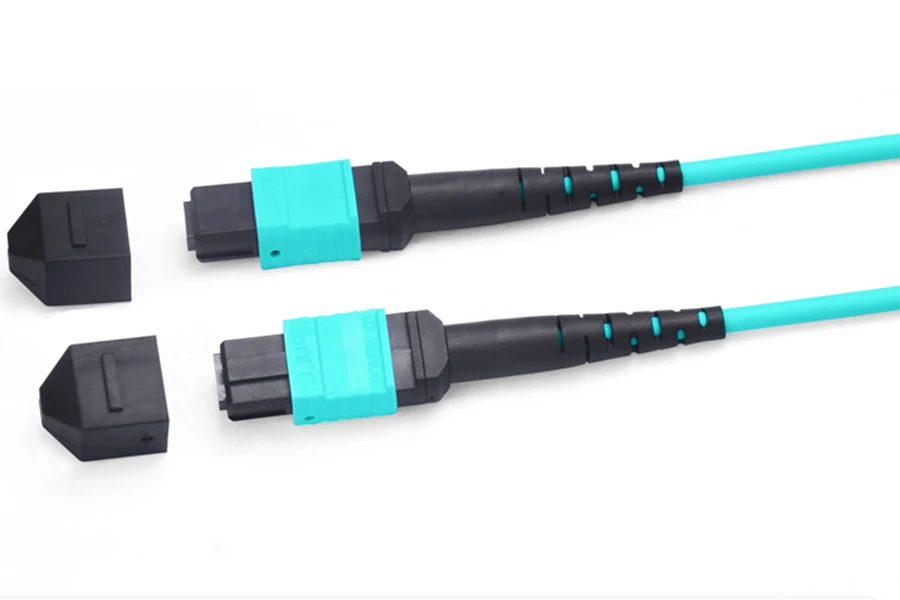

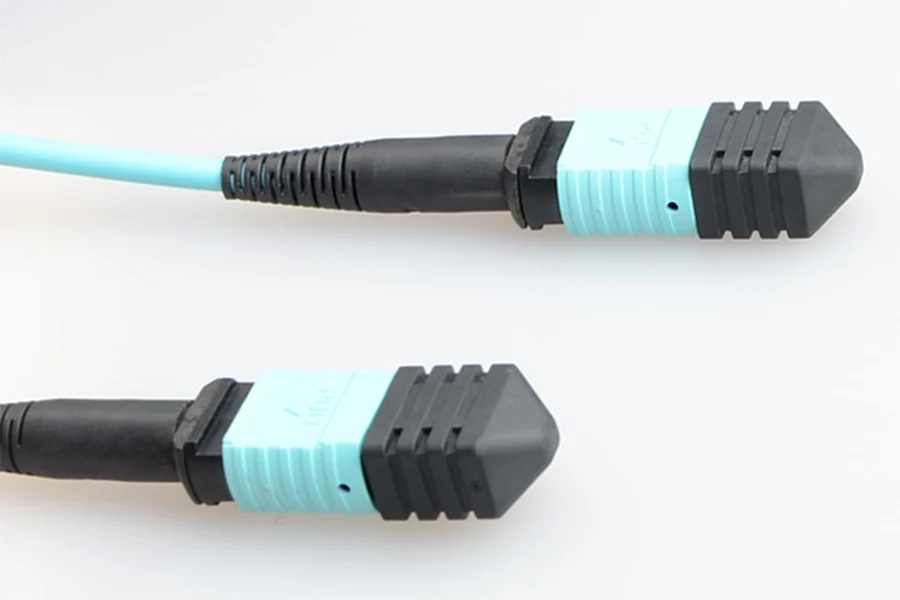

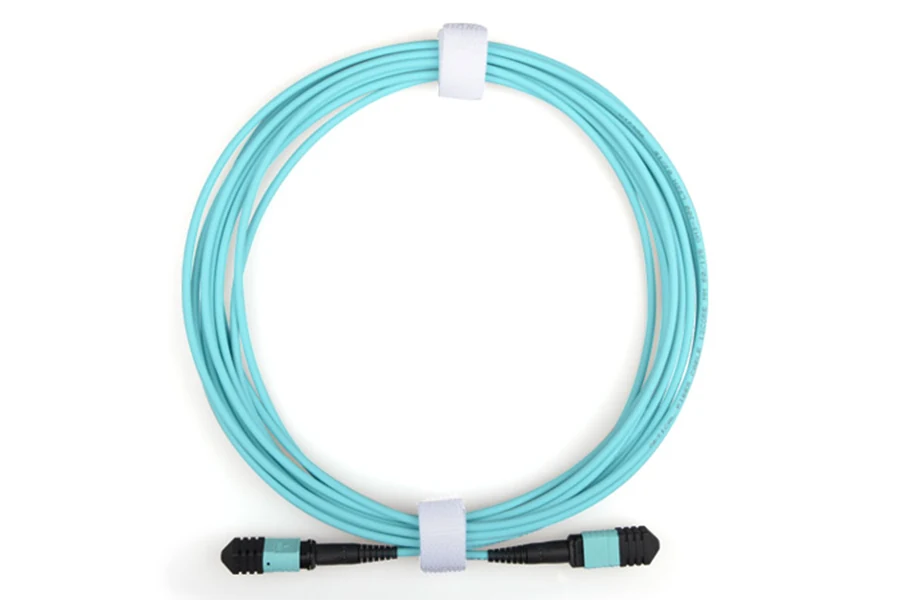

More views
