The GY08-1 cap-type optical cable joint box adopts a laminated clamshell structure, so other splicing trays do not need to be dismantled during operation. Its mechanical sealing technology ensures the reliability and stability of the product, and it provides reliable, robust and flexible protection for fiber direct, terminated and divergent connections.

Key features

• Laminated clamshell structure — other splicing trays need not be dismantled during operation.
• Innovative design, manufacture and material selection with mechanical sealing technology — ensures product reliability and stability.
• Reliable sealing performance — one-time sealing or repeated opening are both optional.
• Reliable grounding protection.
• Whole-process fiber protection, with a bending radius of curvature ≥ 40 mm.
• Compact size and high capacity — 410 mm × 140 mm / 2.5 kg, suitable for 8–18 mm cable, 12 or 24-core splice trays, up to 96 cores.

Application scope

• Fiber to the home (FTTH) projects
• Cable network TV (CATV)
• Passive optical network systems (EPON / BPON / GPON)
• Other optical splitting systems
• Metropolitan area networks (MAN)
• Local area networks (LAN) and access networks

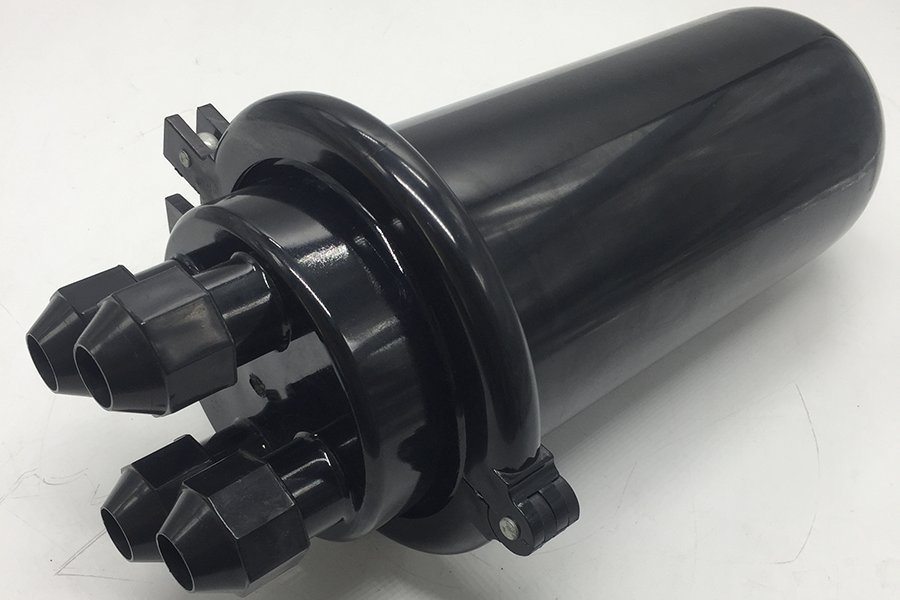

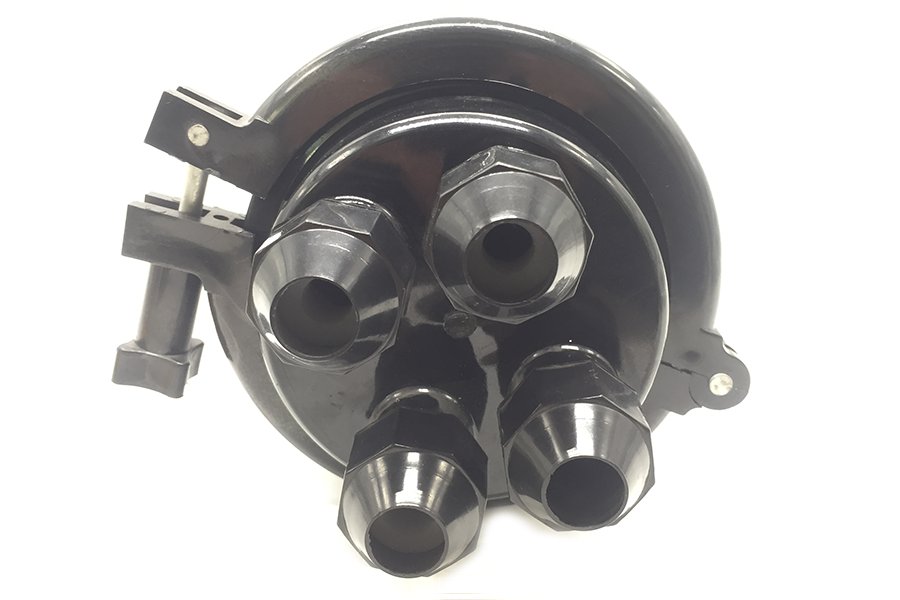

More views
