With the continuous popularization and promotion of FTTH construction, optical fiber quick connection and fiber-optic mechanical cold-connection technology have been vigorously developed.

Key features

• After the fiber-to-the-home, the optical interface needs to use the panel box.
• At present, there are two main types of FTTH panel boxes: Surface mounted (direct mounting) and concealed (mounted on the cassette).
• With cable introduction, fixing and protection devices. Made of high quality PC (flame retardant polycarbonate) material with certain fire resistance.
• The dimensions of the panel are in accordance with the national standard 86, and the size is 86mm×86mm.
• The size of the base is in accordance with the relevant regulations of JB/T 8593-19.
• Single and double-hole panels for a variety of environments, with a robust structure and consistent and interchangeable assembly.
• With fiber optic connector fixture, SC connector can be fixed. The SC connector should be mounted down when the panel is mounted. The concealed panel SC connector is mounted at a 45-degree angle to prevent light from burning the user’s eyes.

Application scope

• Fiber to the home (FTTH) projects
• Cable network TV (CATV)
• Passive optical network systems (EPON / BPON / GPON)
• Other optical splitting systems
• Metropolitan area networks (MAN)
• Local area networks (LAN) and access networks

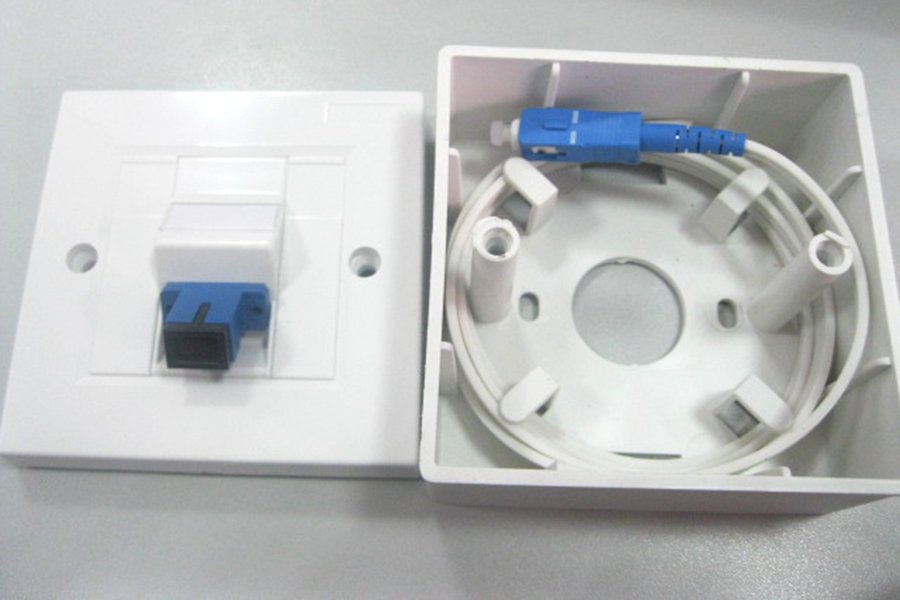

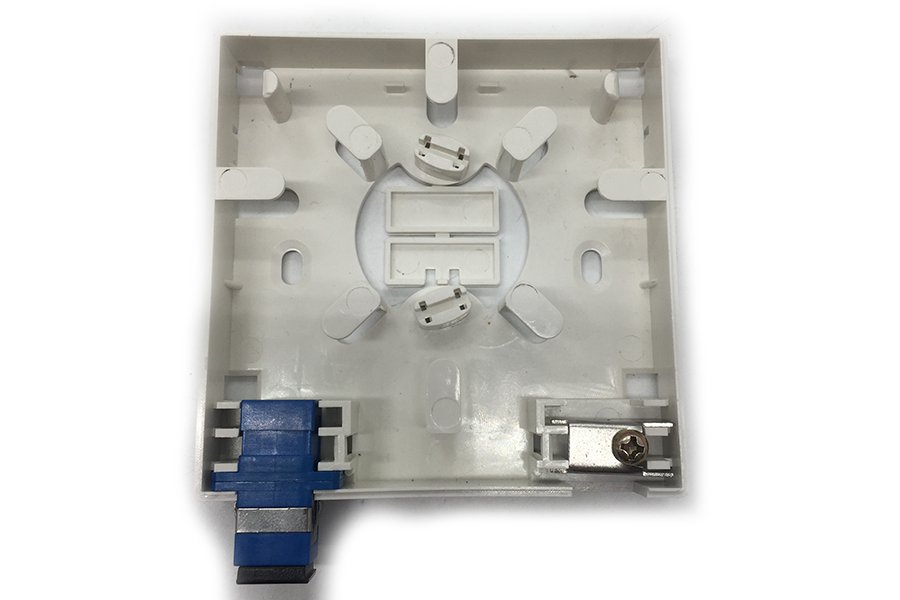

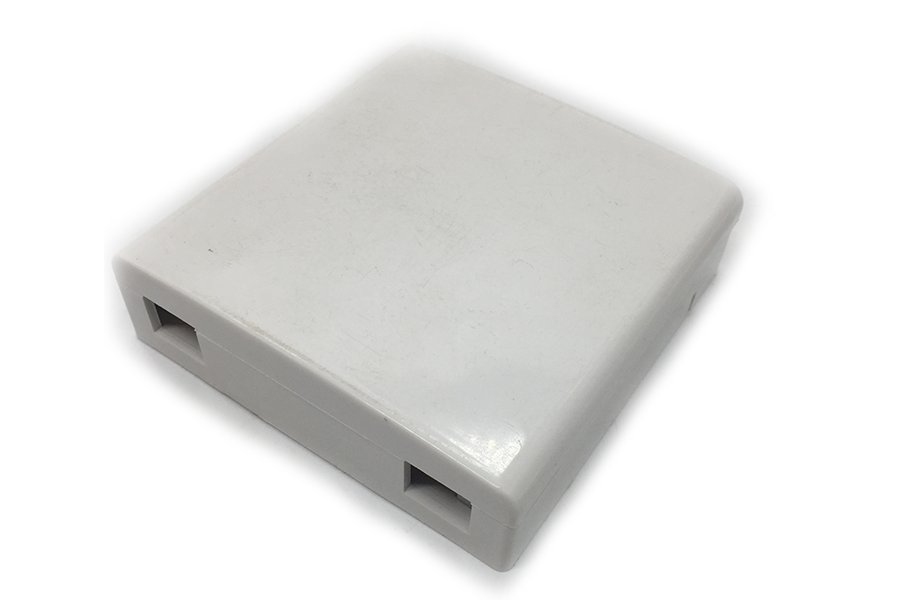

More views
