The FC/APC fiber optic connector is a device for detachable active connections between optical fibers. The external reinforcement is a metal sleeve, the fastening method is a turnbuckle, and the two plugs are screwed together through an adapter. The 8° angled physical contact (APC) end face pushes reflected light out of the fiber core, giving a return loss of 60 dB or better — which is why this connector is widely used in cable television optical networks.

Key features

• Imported A-class ceramic ferrule — higher reliability, better stability, better coaxiality and dimensional accuracy, guaranteeing product quality.
• Foreign advanced grinding equipment — ensures the fiber-centre grinding offset and ceramic surface radius of curvature meet the standard provisions, making the connector more convenient to use.
• Compliance with ANSI, Bellcore, TIA/EIA and IEC international standards as well as domestic telecommunications industry standards.
• Small insertion loss and large return loss, with good interchangeability and repeatability.

Application scope

• CATV
• LAN and access networks
• Telecom networks and Gigabit data network testing
• Medical equipment
• Other industrial and military applications

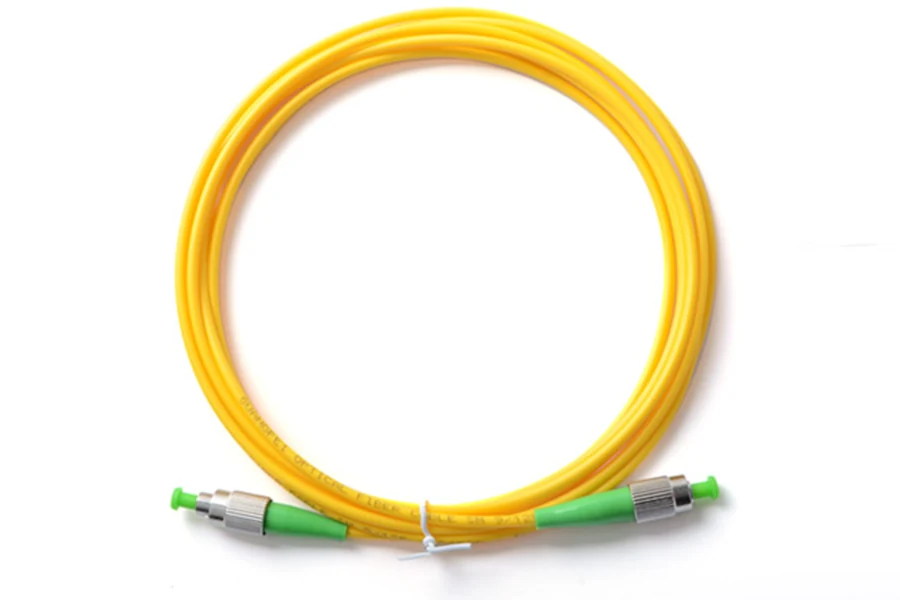

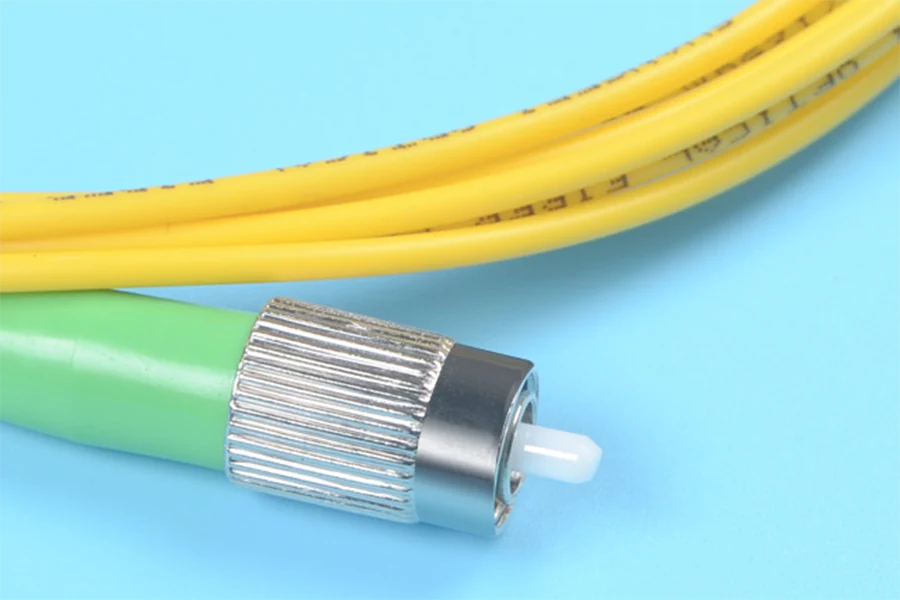

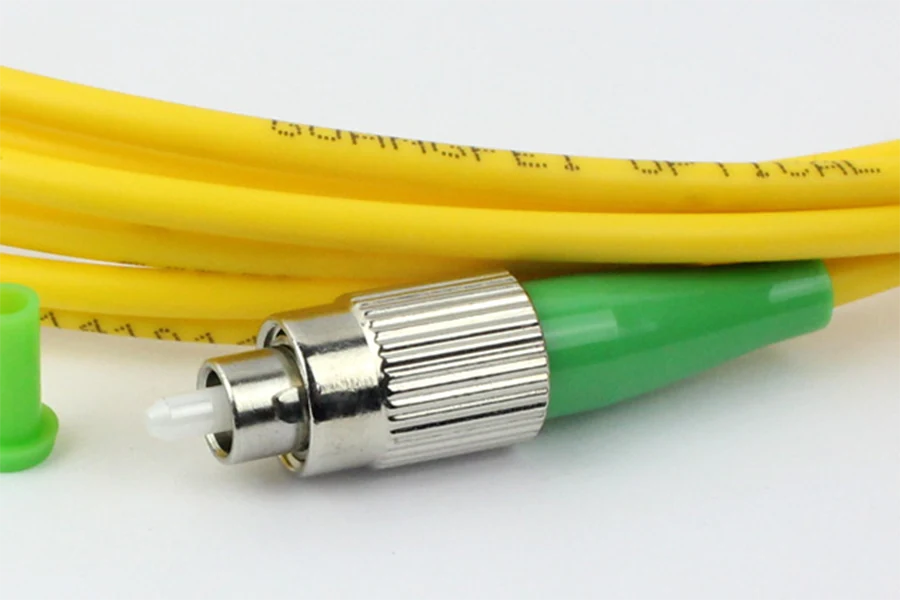

More views
